Product Description

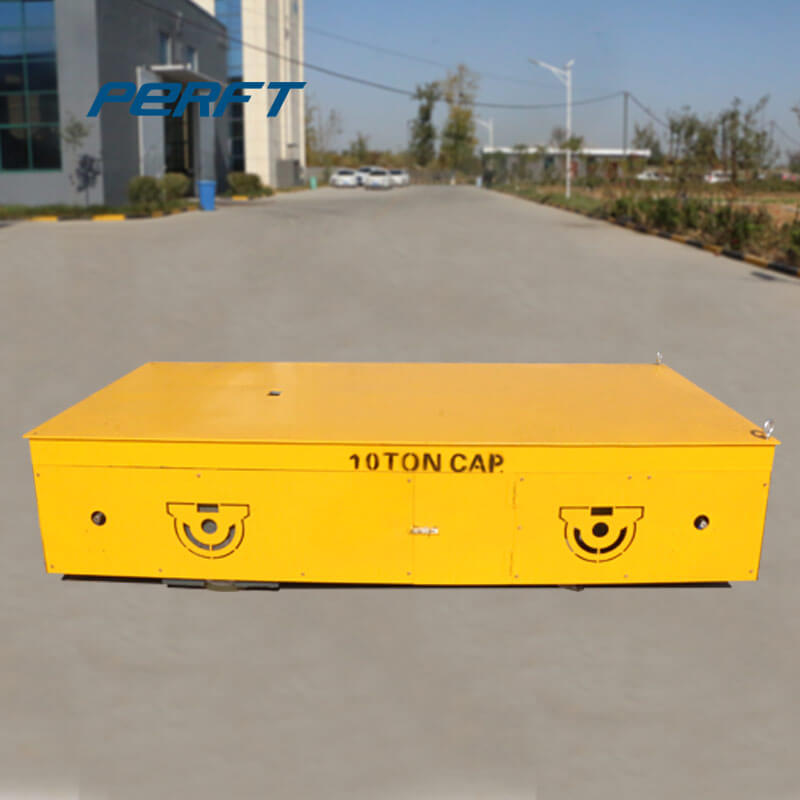

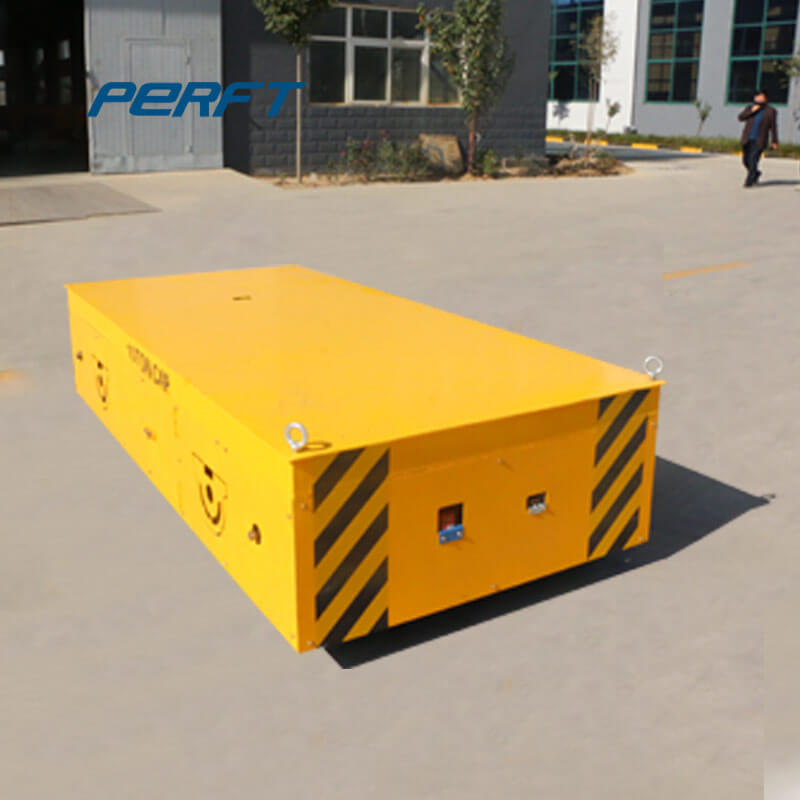

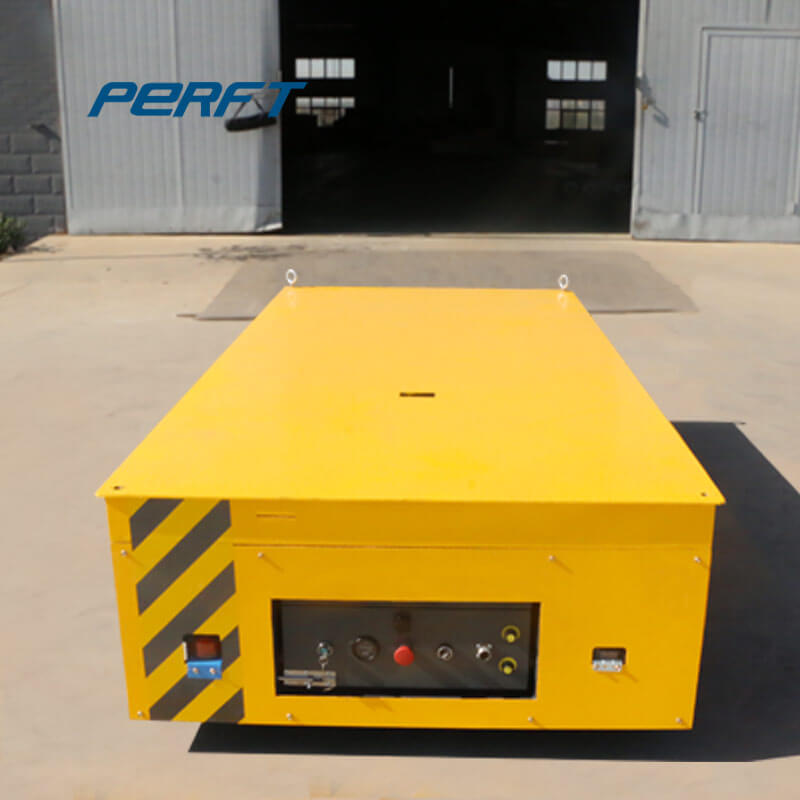

A four-wheel steering trackless motorized transfer cart is used to move dies, coils, or materials between the pressroom and the die storage and maintenance area. Four-wheel steering trackless motorized transfer car has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel or must be transferred from crane bay to crane bay. Our standard heavy-duty design is controlled by a handheld pushbutton controller with a small turning radius.
Wheels of steering trackless motorized transfer cart：
The Four-wheel steering trackless motorized transfer cart wheels are LD. The LD wheel is a special wheel for cranes. It is hardened as a whole. The bearing adopts a wheel and a bearing. After the wheel is assembled, it can rotate flexibly. There are two types of single rim and double rim.
The LD Four-wheel steering trackless motorized transfer cart wheel bearing is inside the wheel. When the wheel rotates, the shaft does not move. The LD wheel is not suitable for large tonnage. The LD wheel cannot be used for magnetically coupled cable drums. The insulation sleeve wears relatively quickly, so it is rarely used. Electric flat car for low-voltage tracks. The corner box wheel group also uses crane-specific wheels. It uses one wheel and two bearing seats. The wheels are single rims. After 4 wheels and 2 drives are assembled, they can rotate flexibly. The corner box wheel has a simple structure and a high load factor, but it is troublesome to adjust the wheel, the wheel is independent, and maintenance and repair are more convenient.
| Model | BWP-5t | BWP-20t | BWP-40t |
| Rated Load(t) | 5 | 20 | 40 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 10 |
| Ground Requirement | Cement floor or Steel plate ground | ||
| Ground Clearance(mm) | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5500 X 2300 |
| Height (mm) | 450 | 600 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4800 |
| Turning Radius (mm) | 2501 | 3901 | 4801 |
| Turning Structure | Mechanical | ||
| Motor Power (KW) | 3.5 | 7 | 12 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||
| Running Speed (m/min) | 0-15 | 0-12 | |
| Brake Principle | Electric magnetic brake | ||
| Operation Method | Radio Remote Control | ||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||
| Warning Equipment | Horn and Flash Light | ||
| Other Functions | Turning light, night light, and power display | ||
